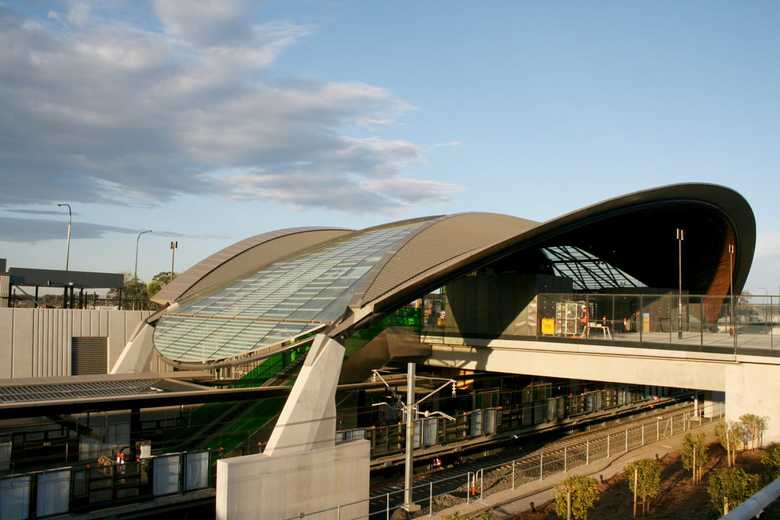

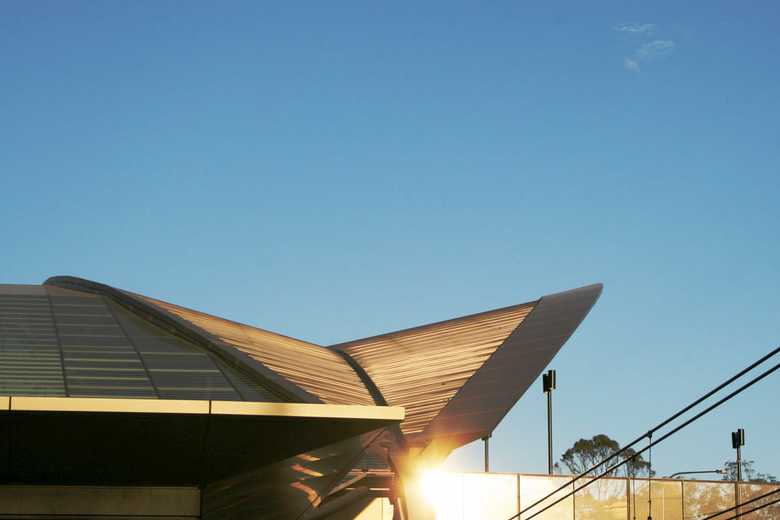

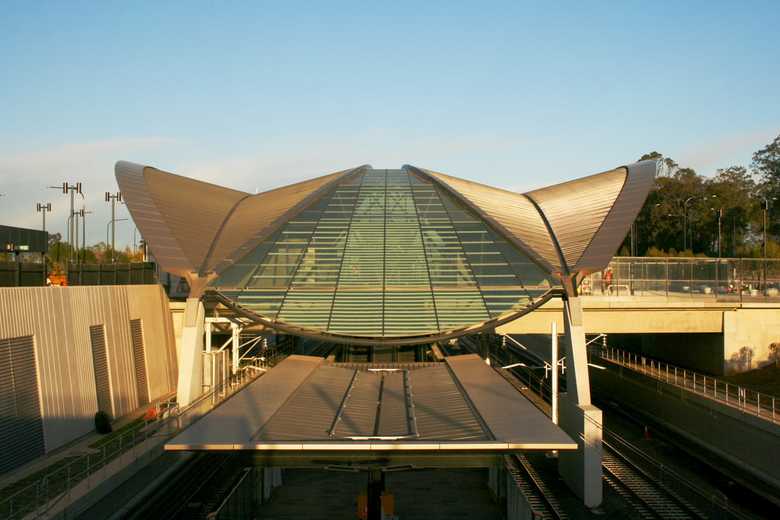

The new Cudgegong Station project consist of 2000m2 of Klip Lok 700 roof sheeting installed to the curved entry canopy structure.
The sheeting is double raked cut and curves over the 40m long canopy which also boasts a 40m radius, which provides the shape of the roofs which the design is inspired by the gum leaf.
Cappings and flashings were segmented to allow for the curve which also included a stainless-steel gutter to suit which was welded onsite and in place, the radius proving to cause some difficulties for our installers. Axis also installed the 6mm stainless steel funnels to the roof drainage system.
(Please note capping joints have had silicone cleaned off joints with dust settling on areas silicone was cleaned)
Client North-West Rapid Transit
Sector Government & Infrastructure
State NSW
